3D CORE,lightweight components,honeycomb

FOAM TYPES

We offer you a selected product range of structure-reinforcing 3D|CORE™ foam cores to produce sandwich composites. These can be formed in 3D and guarantee an optimal resin flow. 3D|CORE™ is the first choice for designers and engineers to increase the rigidity in a sandwich construction and to reduce the weight.

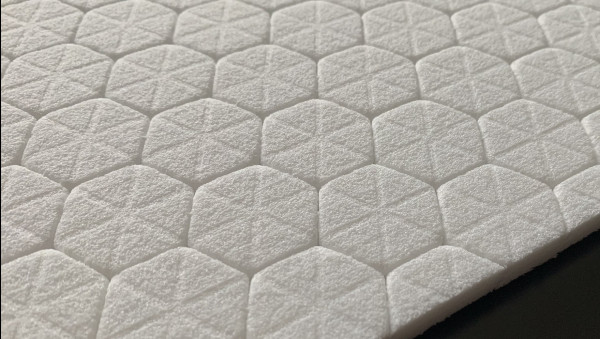

3D|CORE™ PET

The 3D|CORE™ PET is a closed-cell, thermoplastic and recyclable high-performance rigid foam with excellent technical properties. This core is an all-rounder and is particularly suitable for the construction of high-strength, lightweight components with high permanent loads. The 3D|CORE™ PET has been tested and certified by DNV GL. The integrated honeycomb structure creates more flexibility and simplifies handling in production.

  • Excellent fatigue resistance
  • Excellent long-term thermal stability up to 100°C
  • Very high processing temperature up to 150°C
  • Closed-cell foam (no water absorption, no reexpansion, no outgassing)
  • Long lasting - no rotting
  • Easy processing with all known resin systems and processes
  • Very high chemical resistance
  • Homogenous connection of all components
  • Excellent surface adhesion (connection between the surfaces and core)
  • Highly consistent material properties
  • Good thermal insulation
  • DNV GL certificated
  • Integrated flowing aid
  • Low resin absorption

  • Rail and road vehicles: roofs, floor panels, interior, front masks, side panels
  • Ship and boat building: hull, deck, mast, superstructures, interior
  • Industrial components: container, covers, safety doors, sleeves
  • Architecture and construction: roofs, walls, panels
  • Aviation: interior, kitchen furniture, radoms
  • Motorsport: spoiler, bonnet, side elements, trunk lid
  • Automotive: underbody protection, battery box, trunk plate, chassis
  • Sport: skateboard, canoe

  • Hand lay-up
  • Vacuum Infusion
  • Vacuum Assisted RTM (VARTM, LRTM and HP-RTM)
  • Wet pressing
  • Autoclave
  • Prepreg
  • SMC
  • Bonding

Applicable with all known resin systems.

  • 100kg/m³
  • 150kg/m³



3D|CORE™ PET FR

The 3D|CORE™ PET FR is a closed-cell, thermoplastic and recyclable high-performance rigid foam with basic FST properties (flame, smoke, toxicity). The integrated honeycomb structure creates more flexibility and simplifies handling in production. It is suitable for applications to fulfil high fire protection requirements to protect passengers and staff in a fire situation and to evacuate and rescue them.


  • Very good fire retardancy (DIN 5510; NF F16-101; FAR 25.853; EN 13823)
  • Excellent fatigue resistance
  • Excellent long-term thermal stability up to 100°C
  • Very high processing temperature up to 150°C
  • Closed-cell foam (no water absorption, no reexpansion, no outgassing)
  • Long lasting - no rotting
  • Easy processing with all known resin systems and processes
  • Very high chemical resistance
  • Homogenous connection of all components
  • Excellent surface adhesion (connection between the surfaces and core)
  • Highly consistent material properties
  • Good thermal insulation
  • integrated flowing aid
  • Low resin absorption

  • Rail and road vehicles: roofs, floor panels, interior, front masks, side panels
  • Ship and boat building: hull, deck, mast, superstructures, interior
  • Industrial components: container, covers, safety doors, sleeves
  • Architecture and construction: roofs, walls, panels
  • Aviation: interior, kitchen furniture, radoms

  • Hand lay-up
  • Vacuum Infusion
  • Vacuum Assisted RTM (VARTM, LRTM and HP-RTM)
  • Wet pressing
  • Autoclave
  • Prepreg
  • SMC
  • Bonding

Applicable with all known resin systems.

  • 95kg/m³



3D|CORE™ PET GR

The 3D|CORE™ PET GR foam core is a green foam made from post-consumer plastics. The core is a closed-cell, thermoplastic and recyclable high-performance rigid foam with excellent technical properties. It is suitable for the construction of high-strength, lightweight components for high loads. The integrated honeycomb structure creates more flexibility and simplifies handling in production. The foam core follows the guidelines for the circular economy and contributes to the preservation and improvement of the human environment.


  • Excellent fatigue resistance
  • Excellent long-term thermal stability up to 100°C
  • Very high processing temperature up to 150°C
  • Closed-cell foam (no water absorption, no reexpansion, no outgassing)
  • Long lasting - no rotting
  • Easy processing with all known resin systems and processes
  • Very high chemical resistance
  • Homogenous connection of all components
  • Excellent surface adhesion (connection between the surfaces and core)
  • Highly consistent material properties
  • Good thermal insulation
  • Integrated flowing aid
  • Low resin absorption
  • Rail and road vehicles: roofs, floor panels, interior, front masks, side panels
  • Ship and boat building: hull, deck, mast, superstructures, interior
  • Industrial components: container, covers, safety doors, sleeves
  • Architecture and construction: roofs, walls, panels
  • Aviation: interior, kitchen furniture, radoms
  • Motorsport: spoiler, bonnet, side elements, trunk lid
  • Automotive: underbody protection, battery box, trunk plate, chassis
  • Sport: skateboard, canoe

  • Hand lay-up
  • Vacuum Infusion
  • Vacuum Assisted RTM (VARTM, LRTM and HP-RTM)
  • Wet pressing
  • Autoclave
  • Prepreg
  • SMC
  • Bonding

Applicable with all known resin systems.

  • 75kg/m³
  • 95kg/m³
  • 200kg/m³

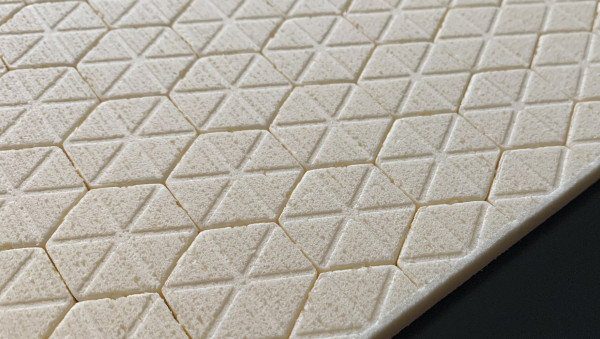

3D|CORE ™ XPS

The 3D | CORE ™ XPS foam core is a high-performance polystyrene foam that is suitable for ultra-light construction applications. The integrated honeycomb structure creates more flexibility and simplifies handling in production. With the various 3D|CORE structures, the technical properties of the foam can be improved to a high-performance core with low weight!

  • Closed-cell foam (no water absorption, no reexpansion, no outgassing)
  • Ultra-light foam
  • Homogenous connection of all components
  • Excellent surface adhesion (connection between the surfaces and core)
  • Highly consistent material properties
  • Excellent thermal insulation
  • Integrated flowing aid
  • Low resin absorption

  • Ship and boat building: hull, deck, interior
  • Industrial components: sport equipment, furniture
  • Architecture and Construction: roofs, walls, panels
  • Motorsport: spoiler, bonnet, side elements

  • Hand lay-up
  • Vacuum Infusion
  • Vacuum Assisted Light-RTM
  • Bonding

Applicable with all known Epoxy and PU resin systems. (Not applicable with styrene).

  • 45kg/m³
